1.Product introduction
1) FRP tank is made of the advanced winding technique, with entire shaping internal bladder.
2) Compared with the same models, it has the characteristics of corrosion resisting, good quality, good appearance, convenient transportation installation, good seepage prevention, long using life.
3)Use high quality FRP composite material to make, with the advantage of anti acid, alkali-resistant ,pull-resistant, high strength etc.
4)Good tightness ,no leakage, completely prevent the pollution of traditional the septic tank ground water leakage. At the same time, improve the damage to building from foundation wet soft sink, with the better environmental protection efficiency.
5)Using unique structure design and high efficient membrane packing , high removal efficiency, small occupy area ,area selection flexible, special suitable for old city building area reform sewage system to set up septic tank.
6)Light weight, convenient to transport. integral construction, no need assembly, install speedy.
7)High compression strength, can install in afforest lawn or below the path.
2.Specification
| Effective volume | Diameter | Septic tank Length(mm) | Height | Clapboard | Head String | Wall thickness |
| (m3) | (mm) | (mm) | Hole(mm) | Height d(mm) | b(mm) | |
| 2 | 1500 | 1700 | 1200 | ∮300×2 | 250 | 9 |
| 4 | 1800 | 2200 | 1500 | ∮300×2 | 250 | |
| 6 | 1800 | 2700 | 1500 | ∮300×2 | 300 | |
| 9 | 1800 | 3000 | 1500 | ∮300×2 | 300 | |
| 12 | 1800 | 3200 | 1500 | ∮300×2 | 300 | |
| 16 | 2300 | 2500 | 2000 | ∮300×2 | 600 | 11.1 |
| 20 | 2300 | 3200 | 2000 | ∮300×2 | 600 | |
| 25 | 2300 | 4000 | 2000 | ∮300×2 | 600 | |
| 30 | 2300 | 4800 | 2000 | ∮300×2 | 600 | |
| 40 | 2800 | 4200 | 2500 | ∮300×2 | 600 | 14.1 |
| 50 | 2800 | 5200 | 2500 | ∮300×2 | 600 | |
| 60 | 3000 | 5700 | 2700 | ∮300×2 | 600 | 14.1 |
| 75 | 3000 | 6700 | 2700 | ∮300×2 | 600 | |
| 100 | 3500 | 6700 | 3200 | ∮300×2 | 650 | 19.1 |
Using high-performance resin and glass fiber winding, lining with PE or ERP etc, and high-performance materials imported FRP Pressure Vessels can also meet the demands in low temperature resistance and toughness is superior to the imported ABS lining Pressure Vessels.
4.Product Features
1). No leakage. No pollution of groundwater
2). Environmental friendly
3).High quality composite material -- FRP. High tensile strengh, corrosion resistance, pressure resistance, impact resistance,long Service life
4).Light weight
5). Easy installation and rich colors.
6). Economic. Lower cost than ferroconcrete septic tank.
5. Application
Water supply and wastewater treatment industry, light industry, chemical industry, electronics, petrochemical, pharmaceutical, food, and other industrial fields.
6. Work condition
| Why you should choose us? |
| ZLRC is one of the biggest FRP manufacturers in China,We are specialized in FRP products .we have all kinds of FRP making machines,such as FRP pipe machine,FRP tank machine, FRP pultrusion machine,FRP grating machine,FRP sheet machine and so on. |
| ZLRC has passed the quality management system of ISO9001, ISO14001. Our technical research team are with 2 professors, 3 senior engineers and 8 doctors, possessing 16 advanced technical patents. |
| We can, therefore, guarantee to provide our customers with competitive prices, strictly quality control, prompt delivery and different products. |
5. Application
Water supply and wastewater treatment industry, light industry, chemical industry, electronics, petrochemical, pharmaceutical, food, and other industrial fields.

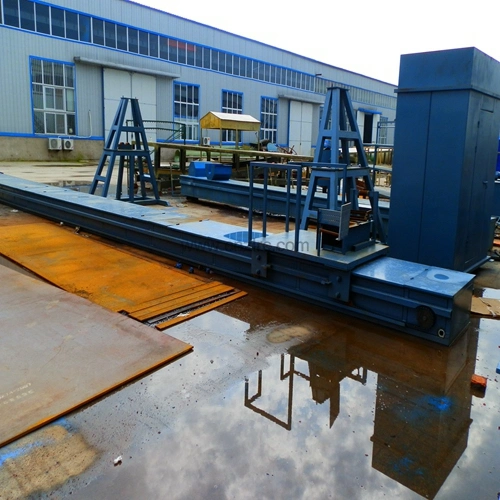

Producing line
We are leader in producing the frp tank. We have more than 30 years experience in producing the frp items. Our tank mould and fiberglass filament winding machine anre in competitive price in china.
Wecoming you visit our factory sincerely.
